150-200L Laboratory Glass Chemical Jacketed Reactor

150-200L Laboratory Glass Chemical Jacketed Reactor

Thông tin chi tiết
Capacity:
150L-200L
Lớp tự động:
Tự động
kiểu:
Ấm phản ứng
Thành phần cốt lõi::
Động Cơ, Động Cơ
Glass Material::
High Borosilicate Glass 3.3
Working Temperatur::
-350
Phương pháp sưởi ấm::
Sưởi ấm dầu nhiệt
Dịch vụ sau bảo hành::
Hỗ trợ trực tuyến
Product Modle:
PGR-150
Khối lượng(L):
150
Neck No.on Cover:
6
External Diameter of Inner Vessel(mm):
550
External Diameter of Outer Vessel(mm):
600
Đường kính bìa (mm):
340
Vessel Height(mm):
980
Sức mạnh động cơ ((W):
400
Trình độ chân không ((mpa):
0,098
Tốc độ quay (rpm):
50-600
Vòng xoắn ((nm):
6,37
Power(V):
220
Diamension(mm):
1200*900*3000
Product Modle:
PGR-200
Khối lượng(L):
200
External Diameter of Inner Vessel(mm):
600
External Diameter of Outer Vessel(mm):
650
Vessel Height(mm):
1200
Sức mạnh động cơ ((W):
750
Diamension(mm):
1200*900*3200
Làm nổi bật:

150-200L jacketed glass reactor

,

laboratory chemical reactor with jacket

,

large capacity lab glass reactor

Mô tả sản phẩm

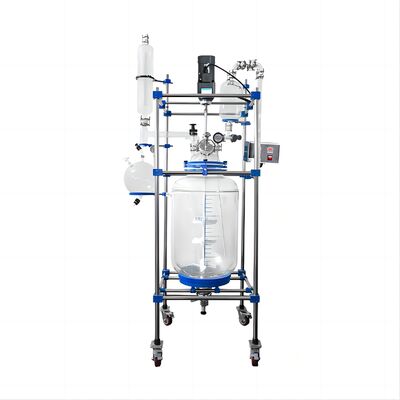

150-200L Laboratory Glass Chemical Jacketed Reactor
150-200L Laboratory Glass Chemical Jacketed Reactor 0

150-200L Laboratory Glass Chemical Jacketed Reactor

The 150-200L laboratory glass chemical jacketed reactor is a robust reactor designed to handle larger reaction volumes, ranging from 150 to 200 liters. Its capacity makes it suitable for advanced research and industrial applications. This reactor is constructed using high-quality laboratory-grade glass, which is resistant to chemical corrosion and ensures optimal visibility of the reaction process. Additionally, the reactor can withstand a wide range of operating temperatures and pressures, providing researchers with versatility and control.

  • High-quality laboratory-grade glass construction
  • Excellent chemical corrosion resistance
  • Optimal visibility of reaction processes
  • Versatile temperature and pressure handling capabilities
  • Robust design for advanced research and industrial use

Ideal for: Pharmaceutical research, chemical synthesis, material science, and pilot-scale production in industries requiring precise reaction control.

Key Product Attributes

Glass Material High Borosilicate Glass 3.3
Automatic Grade Automatic
Type Reaction Kettle
Heating Method Thermal Oil Heating
After Warranty Service Online support

Technical Specifications

Model: PGR-150

Parameter Value Unit Details
Volume 150 L Jacketed Reactor
Neck No. on Cover 6 - Standard Configuration
External Diameter of Inner Vessel 550 mm -
External Diameter of Outer Vessel 600 mm -
Cover Diameter 340 mm -
Vessel Height 980 mm -
Motor Power 400 W -
Vacuum Degree 0.098 Mpa -
Rotation Speed 50-600 rpm Variable Speed
Torque 6.37 Nm -
Power 220 V Single Phase
Dimensions 1200*900*3000 mm (L*W*H)

Model: PGR-200

Parameter Value Unit Details
Volume 200 L Jacketed Reactor
Neck No. on Cover 6 - Standard Configuration
External Diameter of Inner Vessel 600 mm -
External Diameter of Outer Vessel 650 mm -
Cover Diameter 340 mm -
Vessel Height 1200 mm -
Motor Power 750 W -
Vacuum Degree 0.098 Mpa -
Rotation Speed 50-600 rpm Variable Speed
Torque 6.37 Nm -
Power 220 V Single Phase
Dimensions 1200*900*3200 mm (L*W*H)

General Specifications

Parameter Value Unit Details
Working Temperature -350 °C (Note: This value seems unusually low for a working temperature. Please verify.)
Core Components Engine, Motor - Provided
